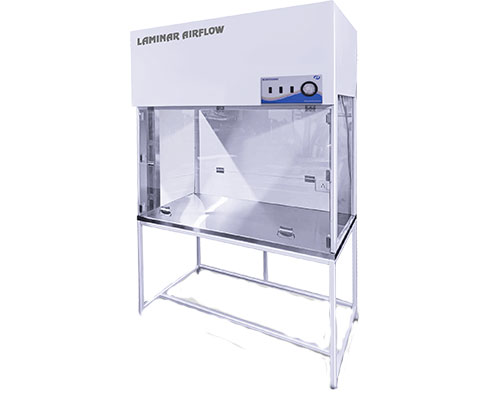

Laminar Air Flow

  • Home
  • Laminar Air Flow

Technical Specification

  • Filter Type: Hepa Filter
  • Efficiency : 99.998%
  • Air velocity:– upto 100 ft/min.
  • Noise level: 65 decibel
  • Static pressure measurement:

Optional Accessories

  • Touch screen controller.
  • PLC HMI system with 7” colour HMI.
  • Mobile alert system GSM.
  • Motorise sash Door

Power Supply

  • 220-240 VAC Single phase 20 AMP

FEATURES

  • User friendly
  • illumination.
  • Work chamber will be on positive pressure.
  • Class 100 environment.
  • HEPA filter of 99.97% efficiency.
  • Pre filters 95% efficient at 5 microns.
  • Germicidal ultra violet tube light.
  • fluorescent tube light for illumination of work surface.
  • Transparent door.
  • Dynamically balanced blower motor assembly.
  • Micro process control with LCD display.
  • UV light and Cock for gas, HEPA filters and pre-filter.
  • Florescent light intensity > 1000 Lux
  • Auto UV cut off when sash door open for safety .
  • Caster wheels for easy movement.
  • Compatible Stabilizer
  • Sash door limit alarm.
  • Filter failure alarm
  • UV light counter.
  • Audio/Visual alarms for deviations.
  • Documents DQ,IQ,OQ ,PQ, Operating & Maintenance Manual

Construction of STD Model (S)

  • Inner chamber stainless steel 304, Outer chamber Mild steel Powder coated.

Construction of GMP Model (G)

  • Inner chamber stainless steel 304, Outer chamber stainless steel 304.

Customized sizes also available as per your requirements.

Cat. Number Size in feet Internal & in (W x D x H) cms Outer Size (W x D x H) in cms Air Flow
MLF-2 S/G 2x2x2 ft, 60X60X60 72X75X195 Horizontal / Vertical
MLF-3 S/G 3x2x2 ft, 90X60X60 1022X75X195 Horizontal / Vertical
MLF-4 S/G 4x2x2 ft, 120X60X60 132X75X195 Horizontal / Vertical
MLF-5 S/G 5x2x2 ft, 150X60X60 162X75X195 Horizontal / Vertical
MLF-6 S/G 6x2x2 ft, 180X60X60 192X75X195 Horizontal / Vertical
