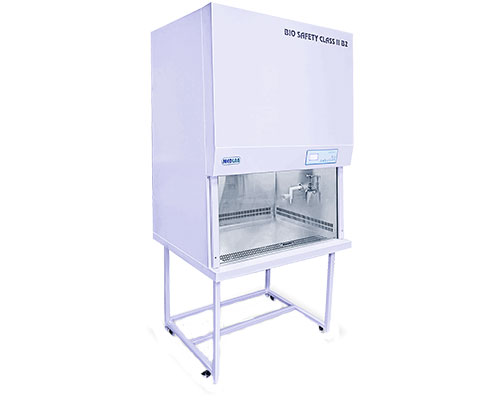

Biosafty Cabinet (Class II B 2)

  • Home
  • Biosafty Cabinet (Class II B 2)

Technical Specification

  • Filter Type: Hepa Filter
  • Efficiency : 99.998%
  • Air inflow velocity:– approx. 0.45 m/s
  • Air downflow velocity:– approx 0.30 m/s
  • Noise level: 65 decibel
  • Static pressure measurement:
  • Magnetic Gauge

Power Supply

  • 220-240 VAC Single phase 20 AMP

Type of cabinet

Class II B 2

  • 100% exhaust through HEPA filter.

Features

  • User friendly
  • illumination.
  • Total Chamber control from PC software.
  • Micro process control with LCD display.
  • UV light for disinfection of area 254nm.
  • Motorise sash door
  • Florescent light intensity > 1000 Lux
  • Auto UV cut off when sash door open for safety .
  • Caster wheels for easy movement.
  • Compatible Stabilizer
  • Sash door limit alarm.
  • Filter failure alarm
  • UV light counter.
  • Audio/Visual alarms for deviations.
  • Documents DQ,IQ,OQ ,PQ, Operating & Maintenance Manual

Optional Accessories

  • Touch screen controller .
  • PLC HMI system with 7” colour HMI.
  • Mobile alert system GSM.
  • Motorise sash Door

Customized sizes also available as per your requirements.

Model No. Type Size In feet Inner size in CMS (WxDxH) Outer size in CMS (WxDxH)
MBC-2 II B 2 Class IIB2 2x2 60X60X60 72X75X195
MBC-3 II B 2 Class IIB2 3x2 90X60X60 1022X75X195
MBC-4 II B 2 Class IIB2 4x2 120X60X60 132X75X195
MBC-5 II B 2 Class IIB2 5x2 150X60X60 162X75X195
MBC-6 II B 2 Class IIB2 6x2 180X60X60 192X75X195
